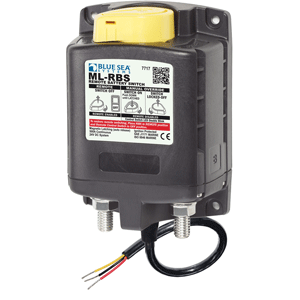

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V
Rated 3/5
based on 1 customer reviews
by Joitos.com,
Be the first one to review this product.
B ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V B br br UL LI Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing br LI LED output to remotely indicate switch state - requires optional LED br LI 3 8 -16 tin-plated copper studs for maximum conductivity and corrosion resistance br LI 7 8 22mm stud length accepts multiple cable terminals br LI Label recesses for circuit identification br LI Silver alloy contacts provide high reliability for switching live loads LI UL br br Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired br br B Specifications B br B Control Circuit Connection B Tinned Wire br B Nominal Voltage B 24V DC br B Manual Control B Yes br B Coil Function B Auto releasing br B Mounting B 10 br B Amperage Operating Current B 8mA when OFF 13mA when ON br B Amperage Operating Current when changing state B 4A 40 ms br B Control Circuit Voltage B 20 2 to 32 9V DC br B Continuous Rating B 500A br B Intermittent Rating B 700A 5 min br B Cranking Rating B 10 sec 2500A br B Cranking Rating B 1 min 1100A br B Minimum Operating Temperature B -10 176 C br B Maximum Operating Temperature B 50 176 C br B Cable Size to Meet Ratings B 2x 4 0 br B Live Current Switching B 300A 12V DC 10 000 Cycles br B Master Control Switch Capability B Yes br B Mechanical Endurance B 100 000 Cycles br B Switching Cycles B 100000 br B Terminal Ring Diameter Clearance B 1 18 29 97mm br B Terminal Stud Length B 0 875 22 23mm br B Terminal Stud Size B 3 8-16 M10 br B Terminal Stud Torque B 140 in-lb 15 82 Nm br B Weight B 1 75lb 0 79 kg p img src https productimageserver com prop65 6pt png alt Warning strong WARNING strong This product can expose you to chemicals including di 2-ethylhexyl phthalate dehp which is known to the State of California to cause cancer birth defects or other reproductive harm For more information go to a href P65Warnings ca gov P65Warnings ca gov a p --- cis2 mmxtmJVt --- br
