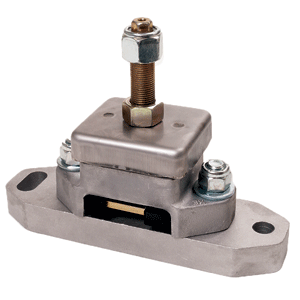

R & D Engine Mount w/6.85' Footprint - 5/8' Stud - 120-410lbs Capacity Per Mount (Yanmar***)
Rated 3/5
based on 1 customer reviews
by Joitos.com,
Be the first one to review this product.
B Engine Mount w 6 85 Footprint - 5 8 Stud - 120-410lbs Capacity Per Mount B br br B Designed as a rear mount for the Yanmar 4JH series engine B br br The R D Marine Engine Mounts are designed specifically for the rigors of marine applications The mounts are stiff enough to absorb forward and reverse propeller thrust yet soft enough to isolate drivetrain vibrations from the hull br br To help increase the longevity of the mounts all steel parts are zinc plated and pasivated to limit corrosion The rubber component is covered by an oil shield to protect it from petroleum based products br br R D Marine mounts are preloaded based on the combined engine and transmission weight to limit engine movement To facilitate in the ease of installation the mounts are height adjusting and the mounting holes in the base of the mount are slotted to assist in alignment of the drivetrain br br B How To Select details required B br 1 Define the total weight of the engine and the transmission br 2 Determine 60 of the total weight and then divide by 2 to determine the capacity of each of the rear mounts the mounts on the tranmission side of the engine br 3 Determine 40 of the total weight and then divide by 2 to determine the capacity of each of the front mounts the mounts opposite the tranmission side of the engine br 4 Determine the stud necessary stud diameter and footprint of the mount br 5 Choose mount most appropriately sized for the per mount weight When possible choose the mount nearest the middle of the weight range br br B Example B br Engine weight is 480lbs transmission weight is 110lbs footprint is 4 stud diameter is 5 8 br Total weight is 590lbs br 590 x 6 2 177 lbs per rear mount Mounts required are 800-010 br 590 x 4 2 118 lbs per rear mount Mounts required are 800-037 br br B Why R D Marine Engine Mounts B br UL LI Designed for marine use accepts propeller and engine thrust in both directions br LI Offers a fail safe design br LI R D Marine Mounts are height adjustable br LI Pre-loaded to reduce movement br LI Slotted holes in base to assist in alignment br LI Mount types to fit all applications LI UL br --- cis2 mmxtmJVt --- br
