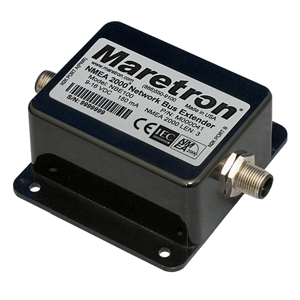

b Network Bus Extender b br Part NBE100-01 br br Maretrons NBE100 Network Bus Extender allows you to extend the maximum node count network trunk length and cumulative drop length of any NMEA 2000 network The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier NMEA 2000 networks have a maximum of 50 nodes allowed on a single network a maximum network trunk length of 200m and a maximum cumulative drop length of 78m If you have a network that exceeds any of these specifications you can simply disconnect the network trunk in the middle and connect the ends to the NBE100 along with additional termination resistors This will split the network into two electrical segments each of which can have up to 50 nodes for a total of 100 nodes on the logical network The NBE100 will transparently route NMEA 2000 messages between the two network segments making them work as a single logical NMEA 2000 network Advanced priority-based message routing ensures that higher-priority messages are always prioritized over lower-priority messages enabling predictable and reliable network operation
